NX I/O-serie

Prestaties en bruikbaarheid voor machinebesturing

In de moderne machinebesturing is een systeembrede synchronisatie van motion-assen met microseconde nauwkeurigheid vereist. Het NX I/O-systeem biedt deze nauwkeurigheid en herhaalbaarheid voor een breed scala aan in- en uitgangen. Het buitengewoon snelle interne bussysteem is gesynchroniseerd met de gedistribueerde klok van het EtherCAT-netwerk, voor een deterministische I/O-werking over het gehele systeem.

Ideale combinatie met Sysmac-controllers voor machineautomatisering en PLC's van de CJ2-serie
Synchrone I/O-updates, systeembreed, met minder dan 1 µs jitter met gebruik van EtherCAT
Hoge signaaldichtheid: max. 16 digitale of 8 analoge signalen op een breedte van 12 mm

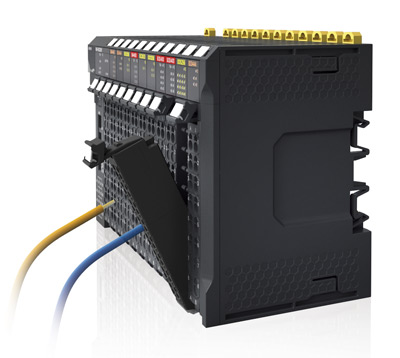

Verwijderbare bedradingsklemmen voor eenvoudige montage en testen van het systeem

Alle modellen vergelijken CAD-bibliotheek

Specificaties & bestelinfo

Productfilters

Filters resetten

Linear analog output type (4)

-10 to 10 V ()
0 to 20 mA ()
4 to 20 mA ()
None ()

Connection method (4)

1-wire ()
2-wire ()
3-wire ()
4-wire ()

Number of analog outputs (3)

0 ()
2 ()
4 ()

Number of encoder input channels (3)

0 ()
1 ()
2 ()

Number of pulse output channels (4)

0 ()
1 ()
2 ()
4 ()

Resolution of the analog outputs (4)

0 Bit ()
13 Bit ()
14 Bit ()
15 Bit ()

Control function (2)

Heat and cool ()
Heat or cool ()

Heater burnout detection (2)

No ()
Yes ()

Output current (3)

0.1 A ()
0.5 A ()
2 A ()

Short-circuit protected outputs (2)

No ()
Yes ()

Max. encoder input frequency (4)

0 kHz ()
500 kHz ()
2000 kHz ()
4000 kHz ()

Max. pulse output frequency (3)

0 kHz ()
500 kHz ()
4000 kHz ()

Suitable for safety functions (2)

No ()
Yes ()

Memory size (3)

512 kByte ()
2048 kByte ()
4096 kByte ()

With certification (2)

No ()
Yes ()

Number of communication ports (3)

1 ()
2 ()
3 ()

I/O connection type (4)

FCN (plug not included) ()
MIL (plug not included) ()
Push-in ()
Screw ()

Number of FG terminals (2)

0 ()
2 ()

Product	Type of module	Linear analog input type	Temperature input type	Linear analog output type	Digital input type	Digital output type	Connection method	Number of analog inputs	Number of analog outputs	Number of digital inputs	Number of digital outputs	Number of encoder input channels	Number of pulse output channels	Resolution of the analog inputs	Resolution of the analog outputs	Input circuit type	Conversion time	Control function	Heater burnout detection	Permitted voltage at input	Output current	Short-circuit protected outputs	Max. encoder input frequency	Max. pulse output frequency	Signal processing	Suitable for safety functions	Memory size	With certification	Communication port(s)	Number of communication ports	I/O connection type	Number of IOV (V+) terminals	Number of IOG (V-) terminals	Number of FG terminals	Beschrijving
NX-AD2203	Analog I/O	4 to 20 mA	None	None				2	0					13 Bit		Single-ended	0.5 ms/unit								Free running	No					Push-in				2 Analog Inputs, 4 to 20 mA single ended, resolution 1:8000, 250 µs/ch, screwless push-in connector, 12 mm wide
NX-AD2204	Analog I/O	4 to 20 mA	None	None				2	0					13 Bit		Differential	0.5 ms/unit								Free running	No					Push-in				2 Analog Inputs, 4 to 20 mA differential, resolution 1:8000, 250 µs/ch, screwless push-in connector, 12 mm wide
NX-AD2208	Analog I/O	4 to 20 mA	None	None				2	0					15 Bit		Differential	0.02 ms/unit								Synchronous	No					Push-in				2 Analog Inputs, 4 to 20 mA differential, resolution 1:30000, 10 µs/ch, screwless push-in connector, 12 mm wide
NX-AD2603	Analog I/O	-10 to 10 V	None	None				2	0					13 Bit		Single-ended	0.5 ms/unit								Free running	No					Push-in				2 Analog Inputs, -10 to 10 V single ended, resolution 1:8000, 250 µs/ch, screwless push-in connector, 12 mm wide
NX-AD2604	Analog I/O	-10 to 10 V	None	None				2	0					13 Bit		Differential	0.5 ms/unit								Free running	No					Push-in				2 Analog Inputs, -10 to 10 V differential, resolution 1:8000, 250 µs/ch, screwless push-in connector, 12 mm wide
NX-AD2608	Analog I/O	-10 to 10 V	None	None				2	0					15 Bit		Differential	0.02 ms/unit								Synchronous	No					Push-in				2 Analog Inputs, -10 to 10 V differential, resolution 1:30000, 10 µs/ch, screwless push-in connector, 12 mm wide
NX-AD3203	Analog I/O	4 to 20 mA	None	None				4	0					13 Bit		Single-ended	1 ms/unit								Free running	No					Push-in				4 Analog Inputs, 4 to 20 mA single ended, resolution 1:8000, 250 µs/ch, screwless push-in connector, 12 mm wide
NX-AD3204	Analog I/O	4 to 20 mA	None	None				4	0					13 Bit		Differential	1 ms/unit								Free running	No					Push-in				4 Analog Inputs, 4 to 20 mA differential, resolution 1:8000, 250 µs/ch, screwless push-in connector, 12 mm wide
NX-AD3208	Analog I/O	4 to 20 mA	None	None				4	0					15 Bit		Differential	0.04 ms/unit								Synchronous	No					Push-in				4 Analog Inputs, 4 to 20 mA differential, resolution 1:30000, 10 µs/ch, screwless push-in connector, 12 mm wide
NX-AD3603	Analog I/O	-10 to 10 V	None	None				4	0					13 Bit		Single-ended	1 ms/unit								Free running	No					Push-in				4 Analog Inputs, -10 to 10 V single ended, resolution 1:8000, 250 µs/ch, screwless push-in connector, 12 mm wide
NX-AD3604	Analog I/O	-10 to 10 V	None	None				4	0					13 Bit		Differential	1 ms/unit								Free running	No					Push-in				4 Analog Inputs, -10 to 10 V differential, resolution 1:8000, 250 µs/ch, screwless push-in connector, 12 mm wide
NX-AD3608	Analog I/O	-10 to 10 V	None	None				4	0					15 Bit		Differential	0.04 ms/unit								Synchronous	No					Push-in				4 Analog Inputs, -10 to 10 V differential, resolution 1:30000, 10 µs/ch, screwless push-in connector, 12 mm wide
NX-AD4203	Analog I/O	4 to 20 mA	None	None				8	0					13 Bit		Single-ended	2 ms/unit								Free running	No					Push-in				8 Analog Inputs, 4 to 20 mA single ended, resolution 1:8000, 250 µs/ch, screwless push-in connector, 12 mm wide
NX-AD4204	Analog I/O	4 to 20 mA	None	None				8	0					13 Bit		Differential	2 ms/unit								Free running	No					Push-in				8 Analog Inputs, 4 to 20 mA differential, resolution 1:8000, 250 µs/ch, screwless push-in connector, 12 mm wide
NX-AD4208	Analog I/O	4 to 20 mA	None	None				8	0					15 Bit		Differential	0.08 ms/unit								Synchronous	No					Push-in				8 Analog Inputs, 4 to 20 mA differential, resolution 1:30000, 10 µs/ch, screwless push-in connector, 12 mm wide
NX-AD4603	Analog I/O	-10 to 10 V	None	None				8	0					13 Bit		Single-ended	2 ms/unit								Free running	No					Push-in				8 Analog Inputs, -10 to +10 V single ended, resolution 1:8000, 250 µs/ch, screwless push-in connector, 12 mm wide
NX-AD4604	Analog I/O	-10 to 10 V	None	None				8	0					13 Bit		Differential	2 ms/unit								Free running	No					Push-in				8 Analog Inputs, -10 to +10 V differential, resolution 1:8000, 250 µs/ch, screwless push-in connector, 12 mm wide
NX-AD4608	Analog I/O	-10 to 10 V	None	None				8	0					15 Bit		Differential	0.08 ms/unit								Synchronous	No					Push-in				8 Analog Inputs, -10 to +10 V differential, resolution 1:30000, 10 µs/ch, screwless push-in connector, 12 mm wide
NX-CIF101	Communication																								Free running	No			Serial RS-232C	1					Serial Communication Interface Unit, 1 x RS-232C, screwless push-in connector, 12 mm wide
NX-CIF105	Communication																								Free running	No			Serial RS-422, Serial RS-485	1					Serial Communication Interface Unit, 1 x RS-422/485C, screwless push-in connector, 12 mm wide
NX-CIF210	Communication																								Free running	No			Serial RS-232C	1					Serial Communication Interface Unit, 2 x RS-232C, 9-pin D-sub, 30 mm wide
NX-CSG320	Communication																									Yes			EtherNet/IP	3					Safety Gateway for CIP-Safety, SD-Card slot, iBus connection up to 10 A, Interface 1: Ethernet/IP port, Interface 2: CIP-Safety switching ports
NX-DA2203	Analog I/O	None	None	4 to 20 mA				0	2						13 Bit	None	0.5 ms/unit								Free running	No					Push-in				2 Analog Outputs, 4 - 20 mA, resolution 1:8000, 250 µs/ch, screwless push-in connector, 12 mm wide
NX-DA2205	Analog I/O	None	None	4 to 20 mA				0	2						15 Bit	None	0.02 ms/unit								Synchronous	No					Push-in				2 Analog Outputs, 4 - 20 mA, resolution 1:30000, 10 µs/ch, screwless push-in connector, 12 mm wide
NX-DA2603	Analog I/O	None	None	-10 to 10 V				0	2						13 Bit	None	0.5 ms/unit								Free running	No					Push-in				2 Analog Outputs, -10 to 10 V, resolution 1:8000, 250 µs/ch, screwless push-in connector, 12 mm wide
NX-DA2605	Analog I/O	None	None	-10 to 10 V				0	2						15 Bit	None	0.02 ms/unit								Synchronous	No					Push-in				2 Analog Outputs, -10 to 10 V, resolution 1:30000, 10 µs/ch, screwless push-in connector, 12 mm wide
NX-DA3203	Analog I/O	None	None	4 to 20 mA				0	4						13 Bit	None	1 ms/unit								Free running	No					Push-in				4 Analog Outputs, 4 - 20 mA, resolution 1:8000, 250 µs/ch, screwless push-in connector, 12 mm wide
NX-DA3205	Analog I/O	None	None	4 to 20 mA				0	4						15 Bit	None	0.04 ms/unit								Synchronous	No					Push-in				4 Analog Outputs, 4 - 20 mA, resolution 1:30000, 10 µs/ch, screwless push-in connector, 12 mm wide
NX-DA3603	Analog I/O	None	None	-10 to 10 V				0	4						13 Bit	None	1 ms/unit								Free running	No					Push-in				4 Analog Outputs, -10 to 10 V, resolution 1:8000, 250 µs/ch, screwless push-in connector, 12 mm wide
NX-DA3605	Analog I/O	None	None	-10 to 10 V				0	4						15 Bit	None	0.04 ms/unit								Synchronous	No					Push-in				4 Analog Outputs, -10 to 10 V, resolution 1:30000, 10 µs/ch, screwless push-in connector, 12 mm wide
NX-EC0112	Encoder input				Incremental encoder, NPN	None						1	0										500 kHz	0 kHz	Free running, Synchronous, Task period prioritized	No					Push-in	4	4		1 x Incremental Encoder NPN Input, Phases A and B: Single-phase 500 kHz (phase difference pulse Input x4: 125 kHz), Phase Z: 125 kHz, screwless push-in connector, 12 mm wide
NX-EC0122	Encoder input				Incremental encoder, PNP	None						1	0										500 kHz	0 kHz	Free running, Synchronous, Task period prioritized	No					Push-in	4	4		1 x Incremental Encoder PNP Input, Phases A and B: Single-phase 500 kHz (phase difference pulse Input x4: 125 kHz), Phase Z: 125 kHz, screwless push-in connector, 12 mm wide
NX-EC0132	Encoder input				Incremental encoder, Line driver (RS-422), NPN	None						1	0										4000 kHz	0 kHz	Free running, Synchronous, Task period prioritized	No					Push-in	3	3		1 x Incremental Encoder Line driver Input, Phases A and B: Single-phase 4 MHz (phase difference pulse Input x4: 1 MHz), Phase Z: 1 MHz, NPN, screwless push-in connectors, 24 mm wide
NX-EC0142	Encoder input				Incremental encoder, Line driver (RS-422), PNP	None						1	0										4000 kHz	0 kHz	Free running, Synchronous, Task period prioritized	No					Push-in	3	3		1 x Incremental Encoder Line driver Input, phases A and B: single-phase 4 MHz (phase difference pulse Input x4: 1 MHz), Phase Z: 1 MHz, PNP, screwless push-in connectors, 24 mm wide
NX-EC0142	Encoder input				Incremental encoder, Line driver (RS-422), PNP	None						1	0										4000 kHz	0 kHz	Free running, Synchronous, Task period prioritized	No					Push-in	3	3		1 x Incremental Encoder Line driver Input, phases A and B: single-phase 4 MHz (phase difference pulse Input x4: 1 MHz), Phase Z: 1 MHz, PNP, screwless push-in connectors, 24 mm wide
NX-EC0212	Encoder input				Incremental encoder, NPN	None						2	0										500 kHz	0 kHz	Free running, Synchronous, Task period prioritized	No					Push-in	2	2		2 x Incremental Encoder NPN Inputs, Phases A and B: Single-phase 500 kHz (phase difference pulse Input x4: 125 kHz), Phase Z: 125 kHz, screwless push-in connector, 12 mm wide
NX-EC0222	Encoder input				Incremental encoder, PNP	None						2	0										500 kHz	0 kHz	Free running, Synchronous, Task period prioritized	No					Push-in	2	2		2 x Incremental Encoder PNP Inputs, Phases A and B: Single-phase 500 kHz (phase difference pulse Input x4: 125 kHz), Phase Z: 125 kHz, screwless push-in connector, 12 mm wide
NX-EC0222	Encoder input				Incremental encoder, PNP	None						2	0										500 kHz	0 kHz	Free running, Synchronous, Task period prioritized	No					Push-in	2	2		2 x Incremental Encoder PNP Inputs, Phases A and B: Single-phase 500 kHz (phase difference pulse Input x4: 125 kHz), Phase Z: 125 kHz, screwless push-in connector, 12 mm wide
NX-ECC203	Bus coupler																									No			EtherCAT Slave	2					NX-series EtherCAT Coupler, 2 ports, 125 µs cycle time, 63 I/O units, max I/O current 10 A, screwless push-in connector, delivered with end cover
NX-ECS112	Encoder input				SSI encoder	None						1	0										2000 kHz	0 kHz	Free running, Synchronous	No					Push-in	2	2		1 x SSI encoder Input, EIA standard RS-422-A, 32 bits max data length, screwless push-in connector, 12 mm wide
NX-ECS212	Encoder input				SSI encoder	None						2	0										2000 kHz	0 kHz	Free running, Synchronous	No					Push-in	2	2		2 x SSI encoder Inputs, EIA standard RS-422-A, 32 bits max data length, screwless push-in connector, 12mm wide
NX-ECT101	Communication																								Free running	No			EtherCAT Slave	2					NX-series EtherCAT® Slave Unit. High-speed data exchange based on EtherCAT.
NX-EIC202	Bus coupler																									No			EtherNet/IP	2					NX-series EtherNet/IP Coupler, 2 ports, supports local safety, 63 I/O units, max I/O current 10 A, screwless push-in connector, delivered with end cover
NX-HAD402	Analog I/O	-10 to 10 V, -5 to 5 V, 0 to 10 V, 0 to 20 mA, 0 to 5 V, 1 to 5 V, 4 to 20 mA	None	None				4	0					16 Bit	0 Bit	Differential	0.02 ms/unit								High speed, Synchronous	No					Push-in				4 High Speed Analog Inputs, -10 to 10 V, -5 to 5 V, 0 to 10 V, 0 to 5 V, 1 to 5V, 0 to 20 mA, 4 to 20 mA, differential, resolution 16 bit, 5 µs/ch, screwless push-in connector, 24 mm wide, PNP
NX-HB3101	Temperature control	Current transformer	None	None	None	NPN		4	0	0	4			10 Bit	0 Bit	Standard	10 ms/unit								Free running	No					Push-in				Heater Burnout Detection Unit, 4 CT inputs, 4 NPN Outputs, screwless push-in connector, 12 mm wide
NX-HB3201	Temperature control	Current transformer	None	None	None	PNP		4	0	0	4			10 Bit	0 Bit	Standard	10 ms/unit								Free running	No					Push-in				Heater Burnout Detection Unit, 4 CT inputs, 4 PNP Outputs, screwless push-in connector, 12 mm wide
NX-HTC3510-5	Temperature control	0 to 10 V, 0 to 20 mA, 0 to 5 V, 1 to 5 V, 4 to 20 mA	B, C (WRe5-26), E, J, JPt100, K, L, N, P (PLII), Pt100, R, S, T, U	0 to 20 mA, 4 to 20 mA	None	PNP, PWM		4	4	0	4					Isolated	50 ms/unit	Heat and cool	Yes						Free running	No					MIL (plug not included)				4 loops, Thermocouple/Pt100/Analog input, 4 Voltage outputs (for driving SSR), 4 Linear current outputs, Heating and Cooling Control, Heater burnout alarm, MIL connector
NX-HTC4505-5	Temperature control	0 to 10 V, 0 to 20 mA, 0 to 5 V, 1 to 5 V, 4 to 20 mA	B, C (WRe5-26), E, J, JPt100, K, L, N, P (PLII), Pt100, R, S, T, U	None	None	PNP, PWM		8	0	0	8					Isolated	50 ms/unit	Heat or cool	Yes						Free running	No					MIL (plug not included)				8 loops, Thermocouple/Pt100/Analog input, 8 Voltage outputs (for driving SSR), Heat or Cool control, Heater burnout alarm, MIL connector
NX-IA3117	Digital I/O				AC voltage	None	2-wire			4	0									170-264 V		No			Free running	No			None		Push-in	0	0		4 Digital Inputs, 240 VAC, individually isolated, screwless push-in connector, 12 mm wide
NX-ID3317	Digital I/O				NPN	None	2-wire, 3-wire			4	0									9-28.8 V		No			Free running, Standard speed, Synchronous	No			None		Push-in	4	4		4 Digital Inputs, Standard speed, NPN 24 VDC, screwless push-in connector, 12 mm wide
NX-ID3343	Digital I/O				NPN	None	2-wire, 3-wire			4	0									15-28.8 V		No			Free running, High speed, Synchronous	No			None		Push-in	4	4		4 Digital Inputs, High speed, NPN 24 VDC, screwless push-in connector, 12 mm wide
NX-ID3344	Digital I/O				NPN	None	2-wire, 3-wire			4	0									15-28.8 V		No			High speed, Timestamp	No			None		Push-in	4	4		4 Digital Inputs, High speed Timestamp, NPN 24 VDC, screwless push-in connector, 12 mm wide
NX-ID3417	Digital I/O				PNP	None	2-wire, 3-wire			4	0									9-28.8 V		No			Free running, Standard speed, Synchronous	No			None		Push-in	4	4		4 Digital Inputs, Standard speed, PNP 24 VDC, screwless push-in connector, 12 mm wide
NX-ID3443	Digital I/O				PNP	None	2-wire, 3-wire			4	0									15-28.8 V		No			Free running, High speed, Synchronous	No			None		Push-in	4	4		4 Digital Inputs, High speed, PNP 24 VDC, screwless push-in connector, 12 mm wide
NX-ID3444	Digital I/O				PNP	None	2-wire, 3-wire			4	0									15-28.8 V		No			High speed, Timestamp	No			None		Push-in	4	4		4 Digital Inputs, High speed Timestamp, PNP 24 VDC, screwless push-in connector, 12 mm wide
NX-ID4342	Digital I/O				NPN	None	2-wire			8	0									15-28.8 V		No			Free running, Standard speed, Synchronous	No			None		Push-in	0	8		8 Digital Inputs, Standard speed, NPN 24 VDC, screwless push-in connector, 12 mm wide
NX-ID4442	Digital I/O				PNP	None	2-wire			8	0									15-28.8 V		No			Free running, Standard speed, Synchronous	No			None		Push-in	8	0		8 Digital Inputs, Standard speed, PNP 24 VDC, screwless push-in connector, 12 mm wide
NX-ID5142-1	Digital I/O				PNP/NPN	None	1-wire			16	0									15-28.8 V		No			Free running, Standard speed, Synchronous	No			None		Screw	0	0		16 Digital Inputs, Standard speed, NPN/PNP 24 VDC, screw connector, 30 mm wide
NX-ID5142-5	Digital I/O				PNP/NPN	None	1-wire			16	0									15-28.8 V		No			Free running, Standard speed, Synchronous	No			None		MIL (plug not included)	0	0		16 Digital Inputs, Standard speed, NPN/PNP 24 VDC, MIL20 connector (not included), 30 mm wide
NX-ID5342	Digital I/O				NPN	None	1-wire			16	0									15-28.8 V		No			Free running, Standard speed, Synchronous	No			None		Push-in	0	0		16 Digital Inputs, Standard speed, NPN 24 VDC, screwless push-in connector, 12 mm wide
NX-ID5442	Digital I/O				PNP	None	1-wire			16	0									15-28.8 V		No			Free running, Standard speed, Synchronous	No			None		Push-in	0	0		16 Digital Inputs, Standard speed, PNP 24 VDC, screwless push-in connector, 12 mm wide
NX-ID6142-5	Digital I/O				PNP/NPN	None	1-wire			32	0									19-28.8 V		No			Free running, Standard speed, Synchronous	No			None		MIL (plug not included)	0	0		32 Digital Inputs, Standard speed, NPN/PNP 24 VDC, MIL40 connector (not included), 30 mm wide
NX-ID6142-6	Digital I/O				PNP/NPN	None	1-wire			32	0									19-28.8 V		No			Free running, Standard speed, Synchronous	No			None		FCN (plug not included)	0	0		32 Digital Inputs, Standard speed, NPN/PNP 24 VDC, FCN40 connector (not included), 30 mm wide
NX-ID6342	Digital I/O				NPN	None				32	0									15-28.8 V		No			Free running, Standard speed, Synchronous	No			None		Push-in	0	0		32 Digital Inputs, Standard speed, NPN 24 VDC, screwless push-in connector, 24 mm wide
NX-ID6442	Digital I/O				PNP	None				32	0									15-28.8 V		No			Free running, Standard speed, Synchronous	No			None		Push-in	0	0		32 Digital Inputs, Standard speed, PNP 24 VDC, screwless push-in connector, 24 mm wide
NX-ILM400	IO-Link master				IO-Link, PNP	IO-Link, PNP	3-wire, 4-wire			4	4									20.4-28.8 V	0.1 A	Yes			Free running	No			IO-Link		Push-in	0	0		NX series IO-Link master IP20, 4 channels
NX-MD6121-5	Digital I/O				PNP/NPN	NPN	1-wire			16	16									15-28.8 V	0.5 A	No			Free running, Standard speed, Synchronous	No			None		MIL (plug not included)	2	2		16 Digital Inputs + 16 Digital NPN Outputs, Standard speed, 24 VDC, 2 x MIL20 connectors (not included), 30 mm wide
NX-MD6121-6	Digital I/O				PNP/NPN	NPN	1-wire			16	16									15-28.8 V	0.5 A	No			Free running, Standard speed, Synchronous	No			None		FCN (plug not included)	2	2		16 Digital Inputs + 16 Digital NPN Outputs, Standard speed, 24 VDC, 2 x FCN24 connectors (not included), 30 mm wide
NX-MD6256-5	Digital I/O				PNP/NPN	PNP	1-wire			16	16									15-28.8 V	0.5 A	Yes			Free running, Standard speed, Synchronous	No			None		MIL (plug not included)	2	2		16 Digital Inputs + 16 Digital PNP Outputs, Standard speed, 24 VDC, 2 x MIL20 connectors (not included), 30 mm wide
NX-OC2633	Digital I/O				None	Relay NO	2-wire			0	2										2 A	No			Free running, Standard speed	No			None		Push-in	0	0		2 Digital Outputs, Normally-open Relays, 2 A, 250 VAC, screwless push-in connector, 12 mm wide
NX-OC2733	Digital I/O				None	Relay NO+NC	3-wire			0	2										2 A	No			Free running, Standard speed	No			None		Push-in	0	0		2 Digital Outputs, NO+NC (SPDT) Relays, 2 A, 250 VAC, screwless push-in connector, 12 mm wide
NX-OC4633	Digital I/O				None	Relay NO	2-wire			0	8										2 A	No			Free running, Standard speed	No			None		Push-in	0	0		8 Digital Outputs, normally-open relays, 2 A, 250 VAC, screwless push-in connector, 24 mm wide
NX-OD2154	Digital I/O				None	NPN	2-wire, 3-wire			0	2										0.5 A	No			High speed, Timestamp	No			None		Push-in	2	2		2 Digital Outputs, High speed Timestamp, NPN 24 VDC, 0.5 A/point, 1 A/NX Unit, screwless push-in connector, 12 mm wide
NX-OD2258	Digital I/O				None	PNP	2-wire, 3-wire			0	2										0.5 A	Yes			High speed, Timestamp	No			None		Push-in	2	2		2 Digital Outputs, High speed Timestamp, PNP 24 VDC, 0.5 A/point, 1 A/NX Unit, screwless push-in connector, 12 mm wide
NX-OD3121	Digital I/O				None	NPN	2-wire, 3-wire			0	4										0.5 A	No			Free running, Standard speed, Synchronous	No			None		Push-in	4	4		4 Digital Outputs, Standard speed, NPN 24 VDC, 0.5 A/point, 2 A/NX Unit, screwless push-in connector, 12 mm wide
NX-OD3153	Digital I/O				None	NPN	2-wire, 3-wire			0	4										0.5 A	No			Free running, High speed, Synchronous	No			None		Push-in	4	4		4 Digital Outputs, High speed, NPN 24 VDC, 0.5 A/point, 2 A/NX Unit, screwless push-in connector, 12 mm wide
NX-OD3256	Digital I/O				None	PNP	2-wire, 3-wire			0	4										0.5 A	Yes			Free running, Standard speed, Synchronous	No			None		Push-in	4	4		4 Digital Outputs, Standard speed, PNP 24 VDC, 0.5 A/point, 2 A/NX Unit, screwless push-in connector, 12 mm wide
NX-OD3257	Digital I/O				None	PNP	2-wire, 3-wire			0	4										0.5 A	Yes			Free running, High speed, Synchronous	No			None		Push-in	4	4		4 Digital Outputs, High speed, PNP 24 VDC, 0.5 A/point, 2 A/NX Unit, screwless push-in connector, 12 mm wide
NX-OD3268	Digital I/O				None	PNP	2-wire, 3-wire			0	4										2 A	Yes			Free running, Standard speed, Synchronous	No			None		Push-in	6	6		4 Digital Outputs, Standard speed, PNP 24 VDC, 2 A/point, 8 A/NX unit, screwless push-in connector, 12 mm wide
NX-OD4121	Digital I/O				None	NPN	2-wire			0	8										0.5 A	No			Free running, Standard speed, Synchronous	No			None		Push-in	8	0		8 Digital Outputs, Standard speed, NPN 24 VDC, 0.5 A/point, 4 A/NX Unit, screwless push-in connector, 12 mm wide
NX-OD4256	Digital I/O				None	PNP	2-wire			0	8										0.5 A	Yes			Free running, Standard speed, Synchronous	No			None		Push-in	0	8		8 Digital Outputs, Standard speed, PNP 24 VDC, 0.5 A/point, 4 A/NX Unit, screwless push-in connector, 12 mm wide
NX-OD5121	Digital I/O				None	NPN	1-wire			0	16										0.5 A	No			Free running, Standard speed, Synchronous	No			None		Push-in	0	0		16 Digital Outputs, Standard speed, NPN 24 VDC, 0.5 A/point, 4 A/NX Unit, screwless push-in connector, 12 mm wide
NX-OD5121-1	Digital I/O				None	NPN	1-wire			0	16										0.5 A	No			Free running, Standard speed, Synchronous	No			None		Screw	1	1		16 Digital Outputs, Standard speed, NPN 24 VDC, 0.5 A/point, 5 A/NX Unit, screw connector, 30 mm wide
NX-OD5121-5	Digital I/O				None	NPN	1-wire			0	16										0.5 A	No			Free running, Standard speed, Synchronous	No			None		MIL (plug not included)	2	2		16 Digital Outputs, Standard speed, NPN 24 VDC, 0.5 A/point, 4 A/NX Unit, MIL20 connector (not included), 30 mm wide
NX-OD5256	Digital I/O				None	PNP	1-wire			0	16										0.5 A	Yes			Free running, Standard speed, Synchronous	No			None		Push-in	0	0		16 Digital Outputs, Standard speed, PNP 24 VDC, 0.5 A/point, 4 A/NX Unit, screwless push-in connector, 12 mm wide
NX-OD5256-1	Digital I/O				None	PNP	1-wire			0	16										0.5 A	Yes			Free running, Standard speed, Synchronous	No			None		Screw	1	1		16 Digital Outputs, Standard speed, PNP 24 VDC, 0.5 A/point, 5 A/NX Unit, screw connector, 30 mm wide
NX-OD5256-5	Digital I/O				None	PNP	1-wire			0	16										0.5 A	Yes			Free running, Standard speed, Synchronous	No			None		MIL (plug not included)	2	2		16 Digital Outputs, Standard speed, PNP 24 VDC, 0.5 A/point, 4 A/NX Unit, MIL20 connector (not included), 30 mm wide
NX-OD6121	Digital I/O				None	NPN				0	32										0.5 A	No			Free running, Standard speed, Synchronous	No			None		Push-in	0	0		32 Digital Outputs, Standard speed, NPN 12~24 VDC, 0.5 A/point, 4 A/NX Unit, screwless push-in connector, 24 mm wide
NX-OD6121-5	Digital I/O				None	NPN	1-wire			0	32										0.5 A	No			Free running, Standard speed, Synchronous	No			None		MIL (plug not included)	4	4		32 Digital Outputs, Standard speed, NPN 24 VDC, 0.5 A/point, 4 A/NX Unit, MIL40 connector (not included), 30 mm wide
NX-OD6121-6	Digital I/O				None	NPN	1-wire			0	32										0.5 A	No			Free running, Standard speed, Synchronous	No			None		FCN (plug not included)	4	4		32 Digital Outputs, Standard speed, NPN 24 VDC, 0.5 A/point, 4 A/NX Unit, FCN40 connector (not included), 30 mm wide
NX-OD6256	Digital I/O				None	PNP				0	32										0.5 A	Yes			Free running, Standard speed, Synchronous	No			None		Push-in	0	0		32 Digital Outputs, Standard speed, PNP 24 VDC, 0.5 A/point, 4 A/NX Unit, screwless push-in connector, 24 mm wide
NX-OD6256-5	Digital I/O				None	PNP	1-wire			0	32										0.5 A	Yes			Free running, Standard speed, Synchronous	No			None		MIL (plug not included)	4	4		32 Digital Outputs, Standard speed, PNP 24 VDC, 0.5 A/point, 4 A/NX Unit, MIL40 connector (not included), 30 mm wide
NX-PC0010	Power connection																									No					Push-in	0	16	0	NX I/O power connection unit, IOG, 5-24 V DC input, 16 terminals, screwless push-in connector, 12mm wide
NX-PC0020	Power connection																									No					Push-in	16	0	0	NX I/O power connection unit, IOV, 5-24 V DC input, 16 terminals, screwless push-in connector, 12mm wide
NX-PC0030	Power connection																									No					Push-in	8	8	0	NX I/O power connection unit, IOV+IOG, 5-24 V DC input, 8 + 8 terminals, screwless push-in connector, 12mm wide
NX-PD1000	Power feed																									No					Push-in	2	2	2	NX bus power supply unit, 24 V DC input, non-isolated, screwless push-in connector, 12 mm wide
NX-PF0630	Power connection																									No					Push-in	4	4	0	NX I/O power feed unit, 5-24 V DC input, 8 terminals, 4A, screwless push-in connector, 12mm wide
NX-PF0730	Power feed																									No					Push-in	4	4	0	NX I/O power feed unit, 5-24 V DC input, 8 terminals, 10A, screwless push-in connector, 12mm wide
NX-PG0112	Pulse output				None	NPN, Voltage pulse						0	1										0 kHz	500 kHz	Synchronous, Task period prioritized	No					Push-in	6	2		1 x Pulse Output, Forward/reverse direction pulses or Pulse + direction signal, NPN, screwless push-in connector, 12 mm wide
NX-PG0122	Pulse output				None	PNP, Voltage pulse						0	1										0 kHz	500 kHz	Synchronous, Task period prioritized	No					Push-in	2	6		1 x Pulse Output, Forward/reverse direction pulses or Pulse + direction signal, PNP, screwless push-in connector, 12 mm wide
NX-PG0232-5	Pulse output				None	Line driver (RS-422), NPN, Voltage pulse						0	2										0 kHz	4000 kHz	Synchronous, Task period prioritized	No					MIL (plug not included)	3	3		2 x Line Driver Pulse Output, NPN, 4 Mpps, 1 x MIL connector, 12 mm wide
NX-PG0242-5	Pulse output				None	Line driver (RS-422), PNP, Voltage pulse						0	2										0 kHz	4000 kHz	Synchronous, Task period prioritized	No					MIL (plug not included)	3	3		2 x Line Driver Pulse Output, PNP, 4 Mpps, 1 x MIL connector, 12 mm wide
NX-PG0332-5	Pulse output				None	Line driver (RS-422), NPN, Voltage pulse						0	4										0 kHz	4000 kHz	Synchronous, Task period prioritized	No					MIL (plug not included)	3	3		4 x Line Driver Pulse Output, NPN, 4 Mpps, 2 x MIL connectors, 24 mm wide
NX-PG0342-5	Pulse output				None	Line driver (RS-422), PNP, Voltage pulse						0	4										0 kHz	4000 kHz	Synchronous, Task period prioritized	No					MIL (plug not included)	3	3		4 x Line Driver Pulse Output, PNP, 4 Mpps, 2 x MIL connectors, 24 mm wide
NX-PNC202	Bus coupler																									No			PROFINET Slave	2					NX-series PROFINET Coupler, 2 ports, 63 I/O units, max I/O current 10 A, screwless push-in connector, delivered with end cover
NX-RS1201	Load cell	Load cell	None	None				1	0					24 Bit	0 Bit	Differential	0.125 ms/unit								Free running, Synchronous	No		No			Push-in				1 x Load Cell input, -5.0 to 5.0 mV/V, 24 bit, 125 µs, screwless push-in connector, 12 mm wide
NX-RS1201-K	Load cell	Load cell	None	None				1	0					24 Bit	0 Bit	Differential	0.125 ms/unit								Free running, Synchronous	No		Yes			Push-in				1 x Load Cell input with certification, -5.0 to 5.0 mV/V, 24 bit, 125 µs, screwless push-in connector, 12 mm wide
NX-SID800	Safety I/O				PNP	None	4-wire			8	2									20.4-28.8 V		No			Free running	Yes			None		Push-in	0	0		8 Digital Safety Inputs, PNP 24 VDC, screwless push-in connector, 12 mm wide
NX-SIH400	Safety I/O				PNP	None	4-wire			4	2									20.4-28.8 V		No			Free running	Yes			None		Push-in	0	0		4 Digital Safety Inputs, PNP 24 VDC, high connectivity unit, screwless push-in connector, 12 mm wide
NX-SL3300	Safety control							0	0	0	0															Yes	512 kByte		None						Safety controller, 32 safety master connections, up to 256 safety I/O
NX-SL3500	Safety control							0	0	0	0															Yes	2048 kByte		None						Safety controller, 128 safety master connections, up to 1024 safety I/O, 2MB memory capacity
NX-SL5500	Safety control							0	0	0	0															Yes	2048 kByte		None						Safety controller, CIP-S and EtherCAT, 128 safety master connections, up to 1024 safety I/O, 2 MB memory capacity, SD Backup/Restore supported
NX-SL5700	Safety control							0	0	0	0															Yes	4096 kByte		None						Safety controller, CIP-S and EtherCAT, 254 safety master connections, up to 2032 safety I/O, 4 MB memory capacity, SD Backup/Restore supported
NX-SOD400	Safety I/O				None	PNP	4-wire			0	4										0.5 A	No			Free running	Yes			None		Push-in	0	4		4 Digital Safety Outputs, PNP 24 VDC, 0.5 A/point, 2.0 A/NX Unit, screwless push-in connector, 12 mm wide
NX-SOH200	Safety I/O				None	PNP	4-wire			0	2										2 A	No			Free running	Yes			None		Push-in	0	2		2 Digital Safety Outputs, PNP 24 VDC, 2.0 A/point, 4.0 A/NX Unit, screwless push-in connector, 12 mm wide
NX-TBX01	Power connection																									No					Push-in	0	0	2	NX FG shield connection unit, 16 terminals, screwless push-in connector, 12mm wide
NX-TC2405	Temperature control	None	B, C (WRe5-26), E, J, JPt100, K, L, N, P (PLII), Pt100, R, S, T, U	None	None	PNP, PWM		2	0	0	2					Isolated	50 ms/unit	Heat or cool	Yes						Free running						Push-in				2 loops, Thermocouple/Pt100 input, PNP 2 Digital Outputs 24 VDC, 21mA/point, Heat or Cool control, Heater burnout alarm, Push-in Plus terminals
NX-TC2406	Temperature control	None	B, C (WRe5-26), E, J, JPt100, K, L, N, P (PLII), Pt100, R, S, T, U	None	None	PNP, PWM		2	0	0	2					Isolated	50 ms/unit	Heat or cool	No						Free running						Push-in				2 loops, Thermocouple/Pt100 input, PNP 2 Digital Outputs 24 VDC, 21 mA/point, Heat or Cool control, Push-in Plus terminals
NX-TC2407	Temperature control	None	B, C (WRe5-26), E, J, JPt100, K, L, N, P (PLII), Pt100, R, S, T, U	None	None	PNP, PWM		2	0	0	4					Isolated	50 ms/unit	Heat and cool	No						Free running						Push-in				2 loops, Thermocouple/Pt100 input, PNP 4 Digital Outputs 24 VDC, 21mA/point, Heat and Cool control, Push-in Plus terminals
NX-TC2408	Temperature control	None	B, C (WRe5-26), E, J, JPt100, K, L, N, P (PLII), Pt100, R, S, T, U	0 to 20 mA, 4 to 20 mA	None	None		2	2	0	0				14 Bit	Isolated	50 ms/unit	Heat or cool	No						Free running						Push-in				2 loops, Thermocouple/Pt100 input, 2 Analog Outputs, 4 - 20 mA, resolution 1:10000, Heat or Cool control, Push-in Plus terminals
NX-TC3405	Temperature control	None	B, C (WRe5-26), E, J, JPt100, K, L, N, P (PLII), Pt100, R, S, T, U	None	None	PNP, PWM		4	0	0	4					Isolated	50 ms/unit	Heat or cool	Yes						Free running						Push-in				4 loops, Thermocouple/Pt100 input, PNP 4 Digital Outputs 24 VDC, 21mA/point, Heat or Cool control, Heater burnout alarm, Push-in Plus terminals
NX-TC3406	Temperature control	None	B, C (WRe5-26), E, J, JPt100, K, L, N, P (PLII), Pt100, R, S, T, U	None	None	PNP, PWM		4	0	0	4					Isolated	50 ms/unit	Heat or cool	No						Free running						Push-in				4 loops, Thermocouple/Pt100 input, PNP 4 Digital Outputs 24 VDC, 21 mA/point, Heat or Cool control, Push-in Plus terminals
NX-TC3407	Temperature control	None	B, C (WRe5-26), E, J, JPt100, K, L, N, P (PLII), Pt100, R, S, T, U	None	None	PNP, PWM		4	0	0	8					Isolated	50 ms/unit	Heat and cool	No						Free running						Push-in				4 loops, Thermocouple/Pt100 input, PNP 8 Digital Outputs 24 VDC, 21 mA/point, Heat and Cool control, Push-in Plus terminals
NX-TC3408	Temperature control	None	B, C (WRe5-26), E, J, JPt100, K, L, N, P (PLII), Pt100, R, S, T, U	0 to 20 mA, 4 to 20 mA	None	None		4	4	0	0				14 Bit	Isolated	50 ms/unit	Heat or cool	No						Free running						Push-in				4 loops, Thermocouple/Pt100 input, 4 Analog Outputs, 4 - 20 mA, resolution 1:10000, Heat or Cool control, Push-in Plus terminals
NX-TS2101	Analog I/O	None	B, C (WRe5-26), E, J, K, L, N, P (PLII), R, S, T, U	None				2	0					14 Bit	0 Bit	Differential	250 ms/unit								Free running	No					Push-in				2 Thermocouple Inputs, type K, J, T, E, L, U, N, R, S, B, C(W/Re5-26), P(PLII), resolution 0.1°C, 250 ms/Unit, screwless push-in connector, 12 mm wide
NX-TS2102	Analog I/O	None	B, C (WRe5-26), E, J, K, L, N, P (PLII), R, S, T, U	None				2	0					17 Bit		Differential	10 ms/unit								Free running	No					Push-in				2 Thermocouple Inputs, type K, J, T, E, L, U, N, R, S, B, C(W/Re5-26), P(PLII), resolution 0.01°C, 10 ms/Unit, screwless push-in connector, 12 mm wide
NX-TS2104	Analog I/O	None	B, C (WRe5-26), E, J, K, L, N, P (PLII), R, S, T, U	None				2	0					20 Bit		Differential	60 ms/unit								Free running	No					Push-in				2 Thermocouple Inputs, type K, J, T, E, L, U, N, R, S, B, C(W/Re5-26), P(PLII), resolution 0.001°C, 60 ms/Unit, screwless push-in connector, 12 mm wide
NX-TS2201	Analog I/O	None	Pt100, Pt1000	None				2	0					14 Bit		Single-ended	250 ms/unit								Free running	No					Push-in				2 Temperature Sensor Inputs, Pt100 (3-wire), Pt1000, resolution 0.1 °C, 250 ms/Unit, screwless push-in connector, 12 mm wide
NX-TS2202	Analog I/O	None	Pt100	None				2	0					17 Bit		Single-ended	10 ms/unit								Free running	No					Push-in				2 Temperature Sensor Inputs, Pt100 (3-wire), resolution 0.01°C, 10 ms/Unit, screwless push-in connector, 12 mm wide
NX-TS2204	Analog I/O	None	Pt100, Pt1000	None				2	0					20 Bit		Single-ended	60 ms/unit								Free running	No					Push-in				2 Temperature Sensor Inputs, Pt100 (3-wire), Pt1000 (3-wire) resolution 0.001°C, 60 ms/Unit, screwless push-in connector, 12 mm wide
NX-TS3101	Analog I/O	None	B, C (WRe5-26), E, J, K, L, N, P (PLII), R, S, T, U	None				4	0					14 Bit		Differential	250 ms/unit								Free running	No					Push-in				4 Thermocouple Inputs, type K, J, T, E, L, U, N, R, S, B, C (W/Re5-26), P (PLII), resolution 0.1°C, 250 ms/Unit, screwless push-in connectors, 24 mm wide
NX-TS3102	Analog I/O	None	B, C (WRe5-26), E, J, K, L, N, P (PLII), R, S, T, U	None				4	0					17 Bit		Differential	10 ms/unit								Free running	No					Push-in				4 Thermocouple Inputs, type K, J, T, E, L, U, N, R, S, B, C (W/Re5-26), P (PLII), resolution 0.01°C, 10 ms/Unit, screwless push-in connectors, 24 mm wide
NX-TS3104	Analog I/O	None	B, C (WRe5-26), E, J, K, L, N, P (PLII), R, S, T, U	None				4	0					20 Bit	0 Bit	Differential	60 ms/unit								Free running	No					Push-in				4 Thermocouple Inputs, type K, J, T, E, L, U, N, R, S, B, C (W/Re5-26), P (PLII), resolution 0.001°C, 60 ms/Unit, screwless push-in connectors, 24 mm wide
NX-TS3201	Analog I/O	None	Pt100, Pt1000	None				4	0					14 Bit		Single-ended	250 ms/unit								Free running	No					Push-in				4 Temperature Sensor Inputs, Pt100 (3-wire), Pt1000, resolution 0.1 °C, 250 ms/Unit, screwless push-in connectors, 24 mm wide
NX-TS3202	Analog I/O	None	Pt100	None				4	0					17 Bit		Single-ended	10 ms/unit								Free running	No					Push-in				4 Temperature Sensor Inputs, Pt100 (3-wire), resolution 0.01°C, 10 ms/Unit, screwless push-in connectors, 24 mm wide
NX-TS3204	Analog I/O	None	Pt100, Pt1000	None				4	0					20 Bit		Single-ended	60 ms/unit								Free running	No					Push-in				4 Temperature Sensor Inputs, Pt100 (3-wire), Pt1000 (3-wire) resolution 0.001°C, 60 ms/Unit, screwless push-in connectors, 24 mm wide
NX-V680C1	RFID																								Free running	No				1					NX series RFID communication unit, 1 antenna port
NX-V680C2	RFID																								Free running	No				2					NX series RFID communication unit, 2 antenna ports

Geen resultaten gevonden. Pas uw filterselectie aan.

Filters resetten

Producten vergelijken Nog producten weergeven

Accessoires

Ethernet cables and accessories

EtherCAT patch cables, improved shield

Shape	Connector 1	Connector 2	Material	Cable	Color	Length in cm												Order code
Shape	Connector 1	Connector 2	Material	Cable	Color	20	30	50	100	150	200	300	500	750	1000	1500	2000	Order code
	M12 straight	M12 straight	PVC	AWG22, 2 pairs	Black	–	–	⬛	⬛	–	⬛	⬛	⬛	–	⬛	–	–	XS5W-T421-[.]M2-SS
	M12 straight	RJ45	PVC	AWG22, 2 pairs	Black	–	–	⬛	⬛	–	⬛	⬛	⬛	–	⬛	–	–	XS5W-T421-[.]MC-SS

Note: For [.] fill in the 1-character length code.

Ethernet patch cables, standard RJ45 connectors

Shape	Connector 1	Connector 2	Material	Cable	Color	Length in cm												Order code
Shape	Connector 1	Connector 2	Material	Cable	Color	20	30	50	100	150	200	300	500	750	1000	1500	2000	Order code
	RJ45 std.	RJ45 std.	LSZH	Cat6a S/FTP 4 pairs	Blue	⬛	⬛	⬛	⬛	⬛	⬛	⬛	⬛	⬛	⬛	⬛	⬛	XS6W-6LSZH8SS[...]CM-B
	RJ45 std.	RJ45 std.	LSZH	Cat6a S/FTP 4 pairs	Yellow	⬛	⬛	⬛	⬛	⬛	⬛	⬛	⬛	⬛	⬛	⬛	⬛	XS6W-6LSZH8SS[...]CM-Y
	RJ45 std.	RJ45 std.	LSZH	Cat6a S/FTP 4 pairs	Green	⬛	⬛	⬛	⬛	⬛	⬛	⬛	⬛	⬛	⬛	⬛	⬛	XS6W-6LSZH8SS[...]CM-G
	RJ45 std.	RJ45 std.	PUR	Cat5e S/FTP 4 pairs	Green	–	–	⬛	⬛	⬛	⬛	⬛	⬛	⬛	⬛	⬛	⬛	XS6W-5PUR8SS[...]CM-G

Note: For [...] fill in the length in cm.

Ethernet patch cables, RJ45/M12 connectors

Shape	Connector 1	Connector 2	Material	Cable	Color	Length in cm								Order code
Shape	Connector 1	Connector 2	Material	Cable	Color	30	50	100	200	300	500	1000	1500	Order code
	RJ45	RJ45	PVC	Cat5e Shielded Quad	Light Blue	A	B	C	D	E	G	J	K	XS5W-T421-[.]MD-K
	M12 straight	M12 straight	PVC	Cat5e Shielded Quad	Light Blue	–	B	C	D	E	G	J	K	XS5W-T421-[.]M2-K
	M12 straight	RJ45	PVC	Cat5e Shielded Quad	Light Blue	A	B	C	D	E	G	J	K	XS5W-T421-[.]MC-K
	M12 angled	M12 angled	PVC	Cat5e Shielded Quad	Light Blue	–	B	C	D	E	G	J	K	XS5W-T422-[.]M2-K
	M12 angled	RJ45	PVC	Cat5e Shielded Quad	Light Blue	A	B	C	D	E	G	J	K	XS5W-T422-[.]MC-K

Note: For [.] fill in the 1-character length code.

Specifications

Item	XS6W-6LSZH8SS_CM-_	XS6W-5PUR8SS_CM-G
Rated current	1 A (at 50°C)
Withstand voltage	1,000 VDC for 60 s (leakage current: 1 mA max.)
Ambient operating temperature	−20 to 60°C	−40 to 85°C
Ambient storage temperature	−20 to 60°C	−40 to 85°C
Ambient installation temperature	0 to 50°C	−10 to 60°C
Protective structure	IP20	IP20

Accessories

Ethernet cables and accessories

Accessories

Type	Connector	Specification	Color	Length	Order code
Ethernet installation cable	none	CAT 5, SF/UTP, 4 × 2 × AWG 24/1 (solid core), Polyurethane (PUR)	Green	100 m	WM IE-5IC4x2xAWG24/1-PUR
Ethernet installation cable	none	CAT 5, SF/UTP, 4 × 2 × AWG 26/7 (stranded core), Polyurethane (PUR)	Green	100 m	WM IE-5CC4x2xAWG26/7-PUR
Ethernet socket	RJ45 socket	DIN-rail mount socket to terminate installation cable in the cabinet	Grey	60 × 17.5 × 67 mm	WM IE-TO-RJ45-FJ-B
Ethernet field-mount plugs	Metal RJ45	for AWG22 to AWG26	Chrome	52 mm	WM IE-PS-RJ45-FH-BK
Ethernet field-mount plugs	Plastic RJ45	for AWG22 to AWG24	Black	52 mm	XS6G-T421-1

Industrial switching hubs

Shape	Functions	Ports	Failure detection	Power supply voltage	Order code
	Quality of Service (QoS): EtherNet/IP control data priority Failure detection: Broadcast storm and LSI error detection 10/100BASE-TX, Auto-negotiation	3	–	24.0 VDC±5%	W4S1-03B
	5	W4S1-05B
⬛	W4S1-05C

Shape

Functions

Ports

Failure detection

Power supply voltage

Order code

Quality of Service (QoS):

EtherNet/IP control data priority

Failure detection:

Broadcast storm and LSI error detection
10/100BASE-TX, Auto-negotiation

–

24.0 VDC±5%

W4S1-03B

W4S1-05B

⬛

W4S1-05C

EtherCAT junction slave

Shape	Functions	Ports	Power supply voltage	Order code
	Creation of star- and tree topologies in EtherCAT networks. Distributed Clock (DC) is supported.	3	20.4 to 28.8 VDC (24 VDC –15% to 20%)	GX-JC03
	6	GX-JC06

Shape

Functions

Ports

Power supply voltage

Order code

Creation of star- and tree topologies
in EtherCAT networks.

Distributed Clock (DC) is supported.

20.4 to 28.8 VDC

(24 VDC –15% to 20%)

GX-JC03

GX-JC06

Hoe kunnen we u helpen?

Als u een vraag hebt of een offerte wilt aanvragen, kunt u contact met ons opnemen of een verzoek indienen.

+32 (0) 2 466 24 80

Offerte aanvragen

Offerte voor NX I/O-serie

Met dit formulier kunt u een prijsaanvraag doen voor de producten van uw keuze. Vul alstublieft alle velden in die gemarkeerd zijn met *. Uw persoonlijke gegevens behandelen wij uiteraard volstrekt vertrouwelijk.

Persoonlijke gegevens

Product NX I/O-serie

Naam

Text error notification

Achternaam

Text error notification

E-mail

Email error notification

Telefoon

Text error notification

Bedrijf

Text error notification

Land

Country error notification

Offerte details

Koopt u bij Omron of bij een distributeur/partner?

Select notification error

Titel/Positie

Select notification error

Vragen of opmerkingen

Text area error notification

Ik ga akkoord met OMRON Privacy Policy

Checkbox error notification

Meld u aan voor de nieuwsbrief

Checkbox error notification

Dank u wel voor uw aanvraag. Wij zenden u de gewenste informatie zo snel als mogelijk.

Wij ondervinden technische problemen. Uw formulierinzending is niet gelukt. Onze verontschuldigingen hiervoor, probeer het later nog een keer. Details: [details]

Download

Offerte aanvragen

Kenmerken

Netwerken

OMRON heeft EtherCAT gekozen als besturingsnetwerk voor de Sysmac NJ-serie machinecontrollers. Het gemak van een standaard Ethernet-bekabeling en een extreem snelle 'on-the-fly' data-uitwisseling komen samen in een nieuwe besturingsarchitectuur van de machine. De hieruit voortvloeiende openheid, modulariteit en determinisme zijn de belangrijkste elementen in de hedendaagse machineautomatisering.

Het gebruik van open standaarden voor programmeren en netwerken garandeert uitwisselbaarheid en interoperabiliteit met externe systemen
Door de modulariteit zijn de systeemconfiguraties flexibel en kunnen ze snel worden aangepast aan de eisen van de eindgebruiker
Determinisme is noodzakelijk om controle over de machine te hebben wanneer de prestaties en nauwkeurigheid worden verhoogd

EtherNet/IP maakt gebruik van het CIP-protocol via de standaard Ethernet-infrastructuur voor een efficiënte en toch betrouwbare data-uitwisseling. Met behulp van de EtherNet/IP-buskoppeling kunnen de I/O van de NX-serie - inclusief veiligheidsbesturing - worden aangesloten op PLC's van de CJ/CS-serie.

ProfiNet-buskoppeling breidt de mogelijkheden van het NX I/O-platform uit, waardoor een breder scala aan architecturen mogelijk is.

Performance

Aangezien iedere set van NX I/O op een EtherCAT-kopstation als een enkel EtherCAT-node wordt geteld, worden de totale netwerkprestaties nauwelijks beïnvloed door het aantal geïnstalleerde I/O-units. Door het aantal EtherCAT-nodes tot een minimum te beperken, worden de cyclustijden van de EtherCAT-motion-assen zo kort mogelijk gehouden, zelfs bij een groot aantal I/O's. Bovendien heeft een lokaal defecte of beschadigde I/O geen invloed op andere EtherCAT-knooppunten in het netwerk. De interne bus van de NX-serie is volledig gesynchroniseerd met de gedistribueerde klok van EtherCAT. Dit garandeert een maximaal tijdsverschil van 1 µs tussen iedere in- of uitgangsunit in het besturingsysteem, ongeacht de locatie van de I/O-units.

Design

Voor het ontwerp van de NX-serie hebben we onze ervaring met gedistribueerde I/O-systemen gebruikt in combinatie met reacties van gebruikers.

De units zijn compact, met een standaardbreedte van 12 mm per unit, maar bieden toch maximaal 16 kanalen per unit
De frontconnectoren zijn voorzien van indrukbedrading waarvoor geen gereedschap is vereist, met 8mm-stiftklemmen voor bedrading tot 1,5 mm2
De klemmen kunnen worden verwijderd voor voorbedraden en veilig stap voor stap testen
Corresponderende labels op de unit en connector verkleinen de kans op onjuiste montage
U kunt 6 sleutels in de klem en de unit plaatsen om op die manier een verkeerde combinatie te voorkomen

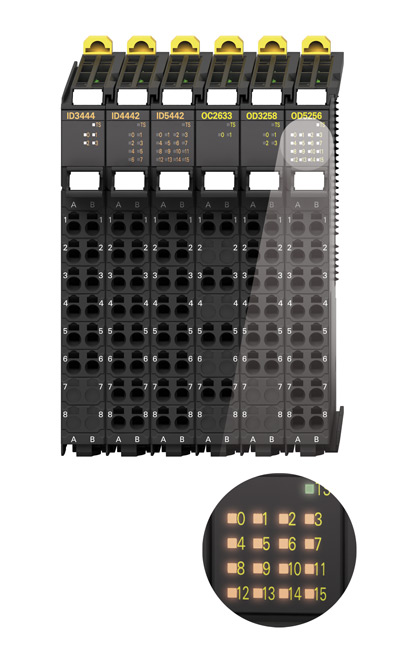

Digital I/O Units

Met de NX-serie kunt u de voordelige standaard I/O's combineren met snelle synchrone modellen. De standaard digitale I/O's hebben 16 aansluitingen per unit, met een keuze uit:

3-draads sensoraansluiting met voeding (4-kanaals units)
2-draads contactingangen of actuatoruitgangen (8-kanaals units)
1-draads aansluiting voor sensoren en actuatoren reeds aangesloten op een gemeenschappelijke voeding (16-kanaals units)

Alle high-speed I/O's maken gebruik van een 3-draads aansluiting en hebben aan/uit-reactietijden van minder dan 300 ns. Met behulp van de gedistribueerde klok van EtherCAT kunnen alle ingangen worden ingelezen, en uitgangen synchroon worden geregeld, met minder dan 1 µs jitter.

Voor een nog grotere controle over de juiste I/O-timing, informeren time-stamp ingangen u over het exacte tijdstip van iedere signaalovergang. Op soortgelijke wijze kunnen time-stamp uitgangen ergens in het EtherCAT-netwerk onafhankelijk worden geregeld met sub-microseconde precisie.

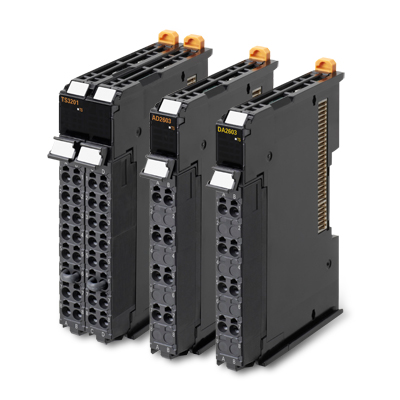

Analog I/O Units

Ingangssignalen van analoge sensoren, 4-20 mA transmitters, thermokoppels of weerstandsthermometers kunnen eenvoudig worden aangesloten en gebruikt voor bewaking, datalogging, trending of PID-regeling. Analoge units zijn verkrijgbaar met samplingtijden van slechts 10 µs per kanaal en een hoge resolutie (1:30.000). Ingebouwde filtering, offsetcorrectie, draadbreuk- en overschrijdingsdetectie zijn allemaal standaardfuncties. De gebruiker kan kiezen uit 12 verschillende specificaties van het thermokoppel, °C/°F en indicatieresolutie vanaf 0,01 graad. Met tot wel acht ingangen op 12 mm breedte is de NX-serie een van de meest compacte modules die momenteel verkrijgbaar zijn.

High-speed analog input unit

De analoge ingangsunit met hoge snelheid zorgt voor een maximale bemonsteringsfrequentie van 5 µs op analoge signalen. De snelle meting van analoge signalen zorgt voor een betere kwaliteitscontrole of een trillingsanalyse voor voorspellend onderhoud. De kwaliteit en de beschikbaarheid van de machine kunnen verbeterd worden, voor een hogere OEE (Overall Equipment Effectiveness). Dit apparaat kan maximaal 4 verschillende signalen tegelijk lezen door 5 µs aan te houden, zelfs bij gebruik van 4 kanalen. De isolatie tussen kanalen voorkomt vervorming tussen kanalen.

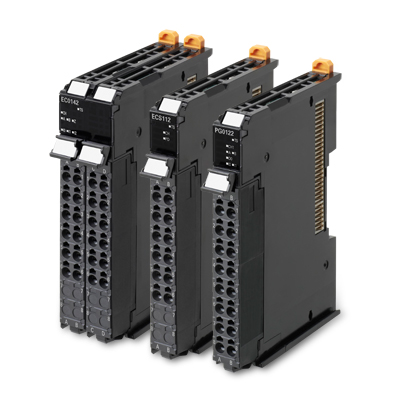

Position I/O Units

Verschillende typen encodersignalen kunnen worden aangesloten, variërend van incrementele encoders tot SSI-encoders (Synchronous Serial Interface). Doordat de positiegegevens kunnen worden gesynchroniseerd met de gedistribueerde klok van EtherCAT, kan de encoder worden gebruikt als motion-as voor overbrenging of volgen. Pulsuitgangen tot 500 kHz kunnen worden gebruikt voor aparte regeling of positionering, en kunnen ook als motion-assen worden ingedeeld wanneer ze worden gebruikt in combinatie met de Sysmac NJ machinecontroller.

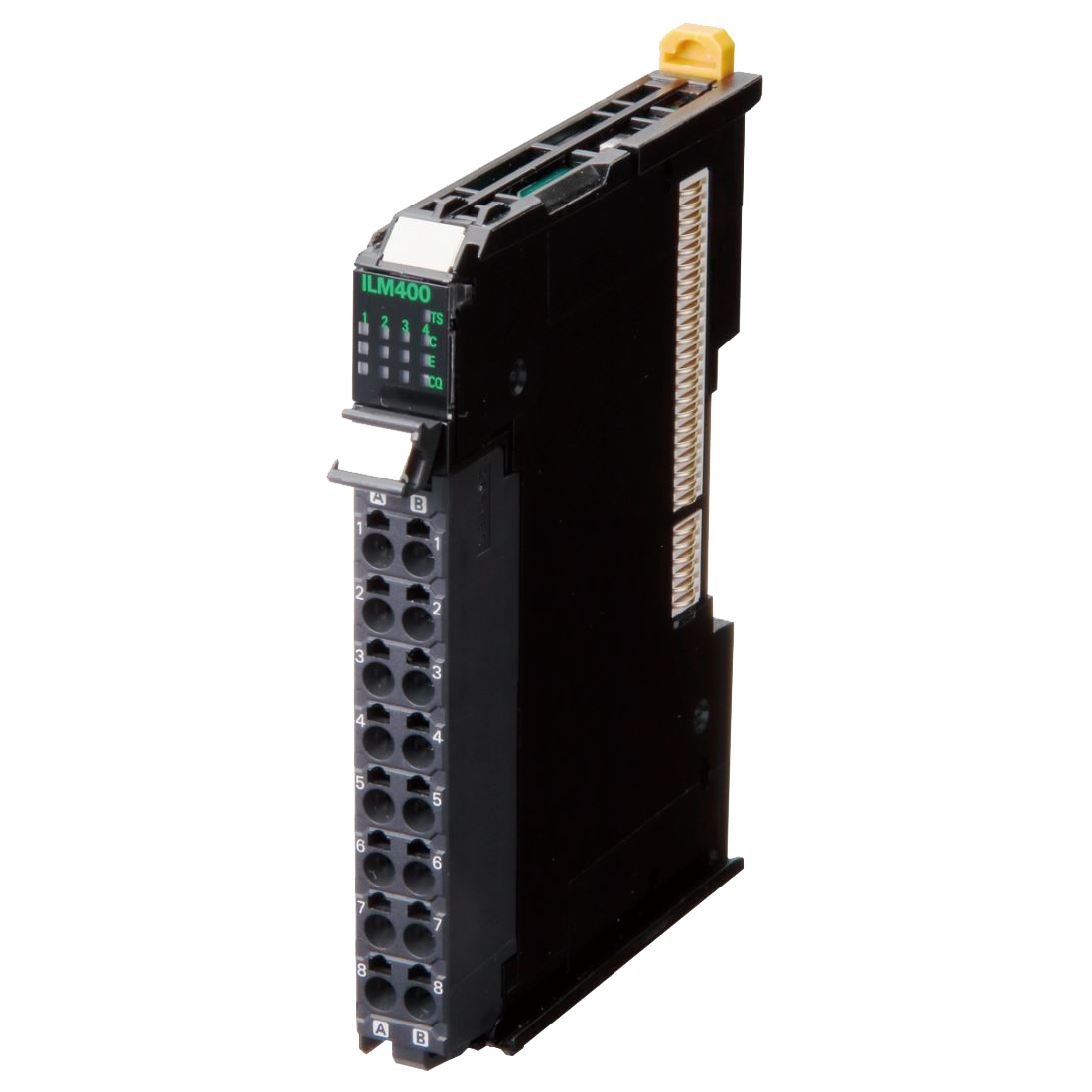

IO-Link Master Unit

IO-Link maakt communicatie tot op sensorniveau mogelijk

Machinestilstand kan worden verminderd.
Detectie van abnormaliteiten voor het snelste herstel.
Statusbewaking voor preventief onderhoud.
Individuele identificatie voor vermindering van manuren.
NX-serie Masterunit met schroefloze klemmenstrook of IP67 GX-serie voor natte en stoffige omgevingen.
Max. 4 sensoren kunnen worden aangesloten op één NX-serie IO-Link masterunit.
Fotocellen en benaderingsschakelaars verkrijgbaar.

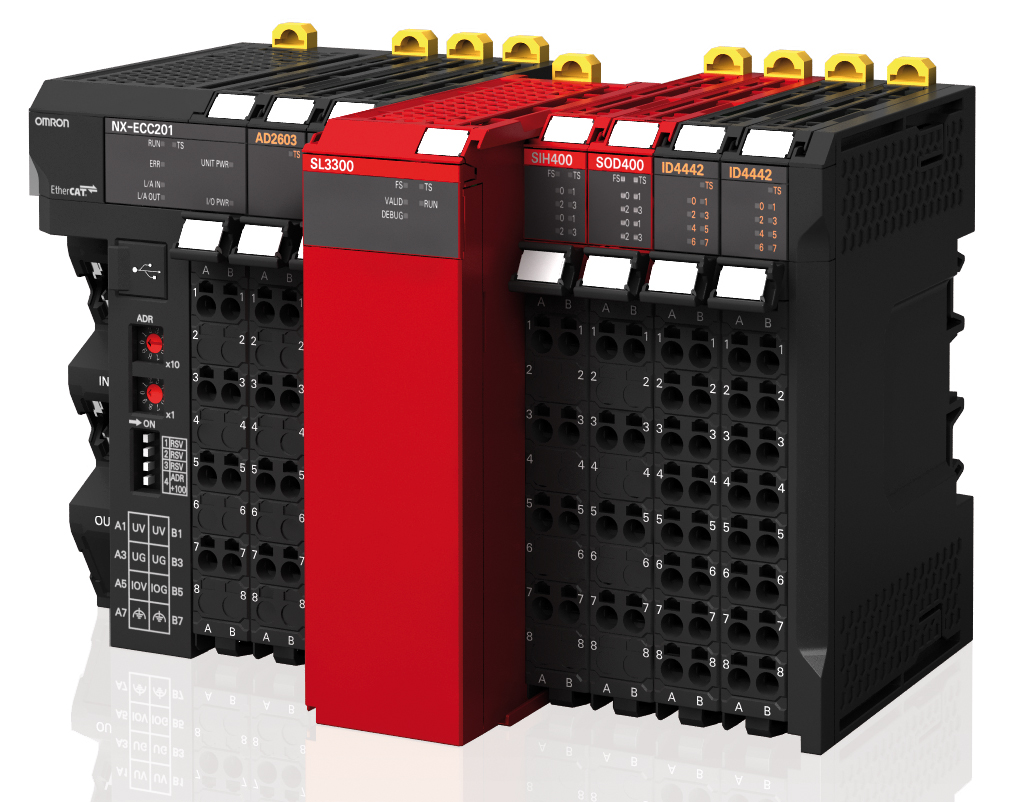

Geïntegreerde veiligheid

Veiligheidscontrollers en veiligheidsin- en uitgangsunits kunnen aan ieder EtherCAT I/O-station van de NX-serie worden toegevoegd om veiligheid en standaardregeling in één netwerk te integreren. De NX-serie voldoet aan alle veiligheidsprestatieniveaus van PL a t/m PL e. Aangezien de standaardregelaars van de NJ-serie (V1.06 en hoger) en kopstations van de NX-serie (V1.1 en hoger) kunnen worden gebruikt, zijn de standaardregeling en veiligheid onafhankelijk van elkaar schaalbaar.

Meer informatie

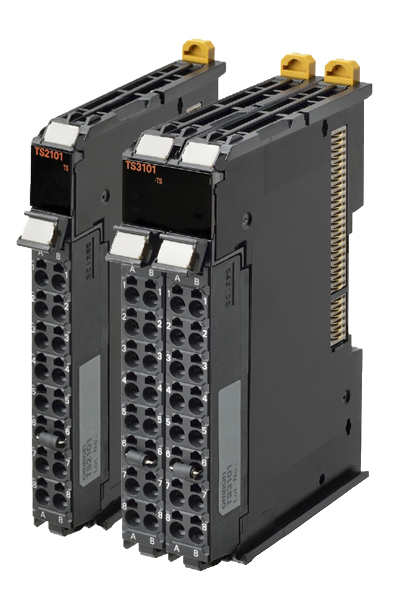

Temperatuurregeling

Optimaliseer besturing door statuswijzigingen eenvoudig te detecteren voor hogere productiviteit en hogere kwaliteit

Adaptieve regeling voor zelfoptimalisatie van de regelinstelling als gevolg van proceswijzigingen
Gespecialiseerde functie voor een betere sealingtoepassing (verpakking) en voor watergekoelde extrusiemachines (kunststof)
Eenvoudigere integratie dankzij ProfiNet, Ethernet-IP en EtherCAT-veldbusondersteuning

Meer informatie

Technische ondersteuning

Hoewel u op deze website al veel informatie kunt vinden, hebben wij ook nog een speciale website ontwikkeld die u zeer veel additionele ondersteuningsinformatie biedt:

Verwante producten

GI-S-serie

GI-S serie
NJ1

Sysmac-controller – NJ1-serie
NJ3

Sysmac-controller – NJ3-serie
NJ5

Sysmac-controller – NJ5-serie
NX Safety Hybrid

Van enkelvoudige machine tot productielijn: alles veilig verbonden
NX-veiligheid gedistribueerd

Geïntegreerde veiligheid in machineautomatisering
NX1

Informatie en productiviteit in een miniatuurcontroller
NX1P

Klein van formaat, groots in prestaties
NX7

Sysmac-controller – NX7-serie
NXR

Ethercat en Ethernet IP IO-Link masters en decentrale IO-Hub IP67-aansluitblokken
NY5

IPC-machinebesturing
Sysmac Studio

Verhoog uw productiviteit
